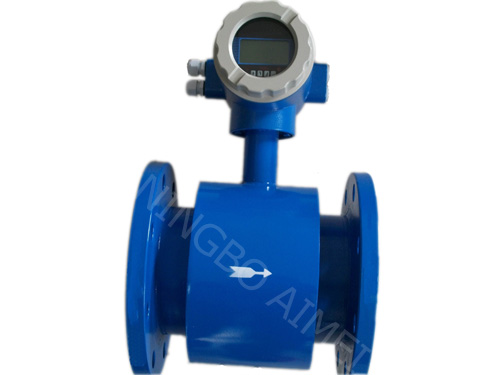

  Product  Type: HHD-15-2400  electromagnetic flowmeter
  Remark:
series electromagnetic flow meter is composed of sensor and converter. It works on Faraday’s electromagnetic induction principle, used for the measuring of volumetric flowerets of liquid whose conductance is greater than 5 μ S/cm. It also can measure the corrosive liquids as strong acid, alkali etc., and two phase(Liquid-solid) suspensions as mud, one pulp, paper pulp, etc., it is widely applied in the field of petroleum, chemical industry, metallurgy, textile, papermaking, environmental protection, food and municipal administration, irrigation project, river dredge ect.


Characteristics
No obstacle existed in the measuring tube, so the pressure loss is zero, hardly blocked.

If the proper electrodes and lining material are adopt end, then the request of anticorrosion, wear resistance can be satisfied.

The measuring results have no relation with physical parameters of liquid, such as pressure, temperature, density, viscosity, conductivity rate(but not below the threshold), etc. It is not influenced by the circumstances, so the accuracy is high, working process is stable and reliable.

Adopt the dual row flow indicator of back lighted dot array, display the instantaneous and totaled flowrate, simultaneously, also displays the working status, parameters, measuring units, etc.

The measuring range of this flowmeter is wide, It’s range ability normally is 20:1, generally can reach 30:1 or even larger.

This flow meter has multi-functional outputs, can be matched with computer, combined instrument unit, can meet the requirements of printing, communication and networking.
