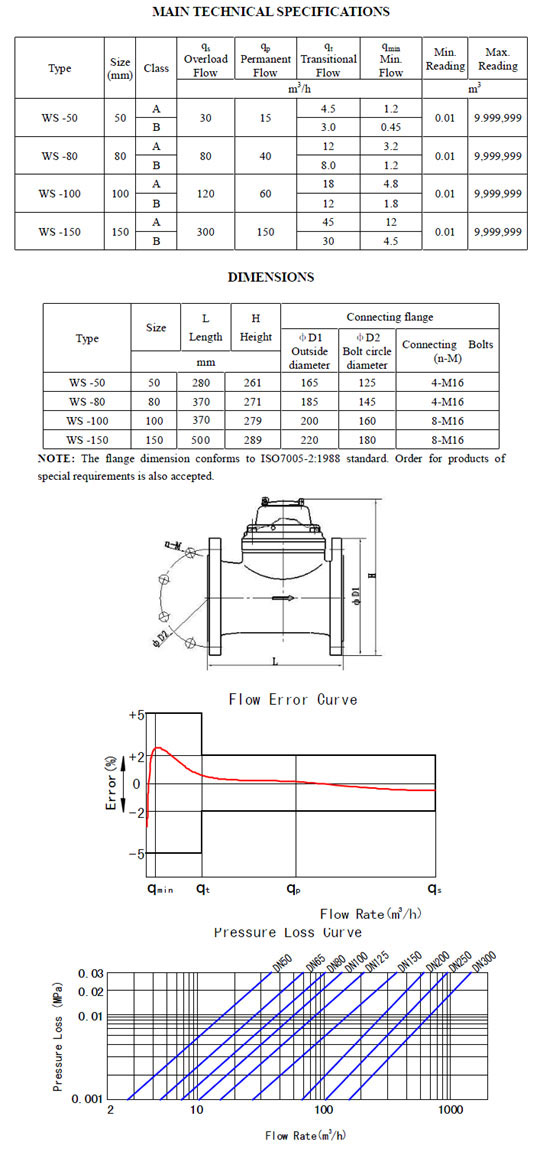

  Product  Type: WS-50-150  UPRIGHT ROTARY VANE WHEEL REMOVABLE WATER METER
  Remark:
APPLICATION:
Measuring the volume of cold water passing through the pipeline.
FEATURES:
Dry type, magnetic drive, wide measurement range, accurate measurement at low flow rate, high sensitivity, low pressure loss and long working life etc.
WORKING CONDITION:
Water temperature: ≤40℃ Water pressure: ≤1.0MPa
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)
MAXIMUM PERMISSIBLE ERROR:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2%
