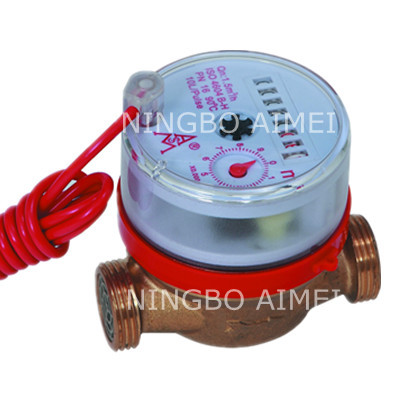

  Product  Type: LXSC-13D6  SINGLE JET DRY DIAL VANE WHEEL WATER METER
  Remark:
APPLICATION:
Measuring the volume of cold potable water passing through the pipeline with remote reading device

FEATURES:
Dry type, small light, magnetic drive, free rotating register, easy and long term clear reading
Length of body of 80mm or 110mm is available.
Magnet resistance

Data Output Options:
10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse

Reed Switch Electric Data
Voltage: 24V AC/DC max.
Current: 0.01A max

WORKING CONDITIONS:
Water temperature: ≤40℃for cold potable water meter (≤90℃for cold potable water meter)
Working Pressure: ≤1.6Mpa (16 bar)

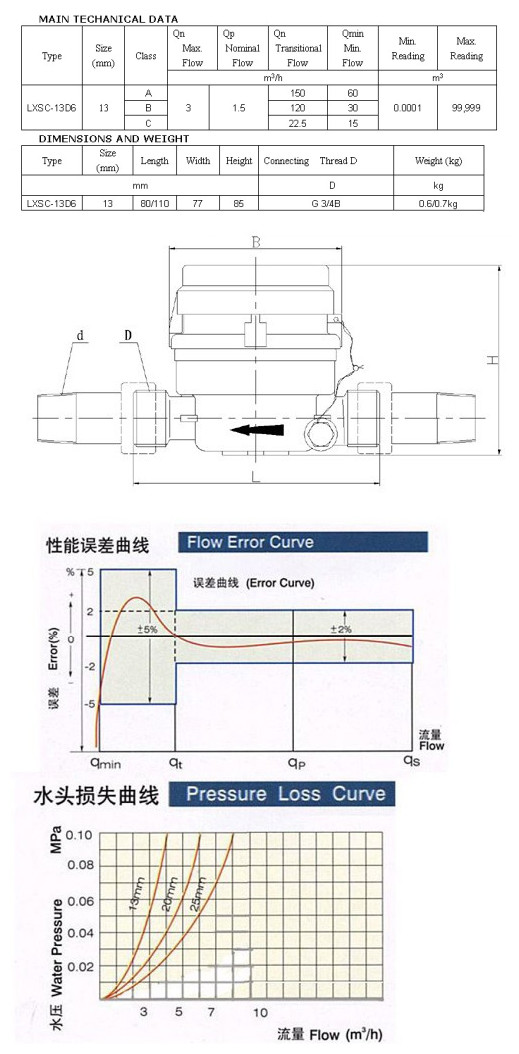

MAXIMUM PERMISSIBLE ERROR
a) In the lower zone from Qmin inclusive up to but excluding Qt is:Cold potable and Hot water meter±5% b)In the upper zone from Qt inclusive up to and including Qs is:Cold potable water meter±2% Hot water meter±2%
