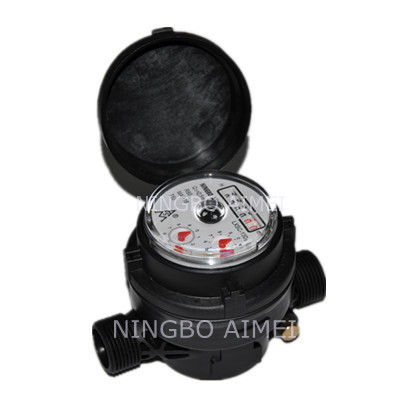

  Product  Type: LXSC-13D8S  SINGLE JET DRY DIAL VANE WHEEL WATER METER
  Remark:
APPLICATION:
◆ Measuring the volume of cold potable water passing through the pipeline.

FEATURES:
◆ Single jet, dry dial;
◆ Magnetic drive, magnet resistance;
◆ Optimum accuracy and performance at all times;
◆ Accurate measurement, easy and long term clear reading, etc.

WORKING CONDITION:
◆Water temperature: Cold Water Meter ≤40℃ Hot Water Meter ≤90℃
◆Water pressure: ≤1.6Mpa (16bar)

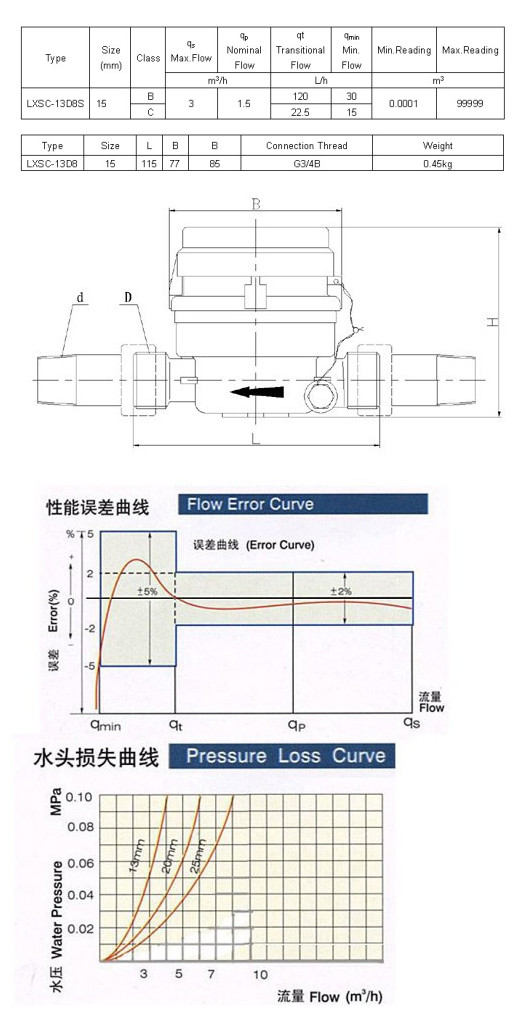

MAXIMUM PERMISSIBLE ERROR:
◆In the lower zone from qmin inclusive up to but excluding qt is ±5%
◆In the upper zone from qt inclusive up to and including qs is ±2%
