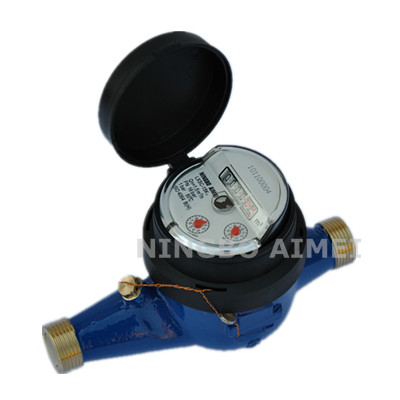

  Product  Type: LXSC-15K1  MULTI-JET DRY TYPE WATER METER
  Remark:
APPLICATION
This range of water meter is used to measure the total quantity of cold potable water which consumed in houshold or a resident unit, passing through the pipeline.

FEATURES
This is a dry-type water meter with copper-can register.Its counting and measuring devices are driven by magnetic coupling. It is characterized by easy reading,good antifreezing property and ability to permanently keep the reading clear.
WORKING CONDITION
Water temperature: ≤50 for cold water meter
Water pressure: ≤1MPa or 1.6MPa optional

MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.
NOTE
Technical data conform to International Standard ISO4064
